Total Reflection X-ray focusing mirror drive FMP-1000A series

Features | Design | Configuration | Specification | Data | Delivery Record

Design

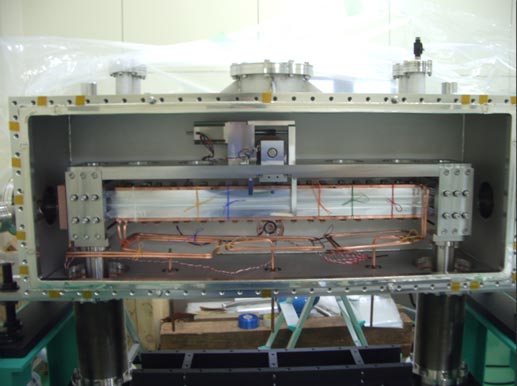

Mirror bending mechanism

Schematic Drawing of the Mirror Bending mechanism (patent)

Movement force to bend the mirror in + direction is given by + direction rotation of the mirror holders when the bowstring is pulled down to + direction by the bent-adjustment drive.
Opposite moment force to bend the mirror in - direction is given in the case the bowstring is pushed up to - direction.

Mirror bending mechanism

Mirror Bending mechanism
