Soft X-ray Diffractometer - TACoDE

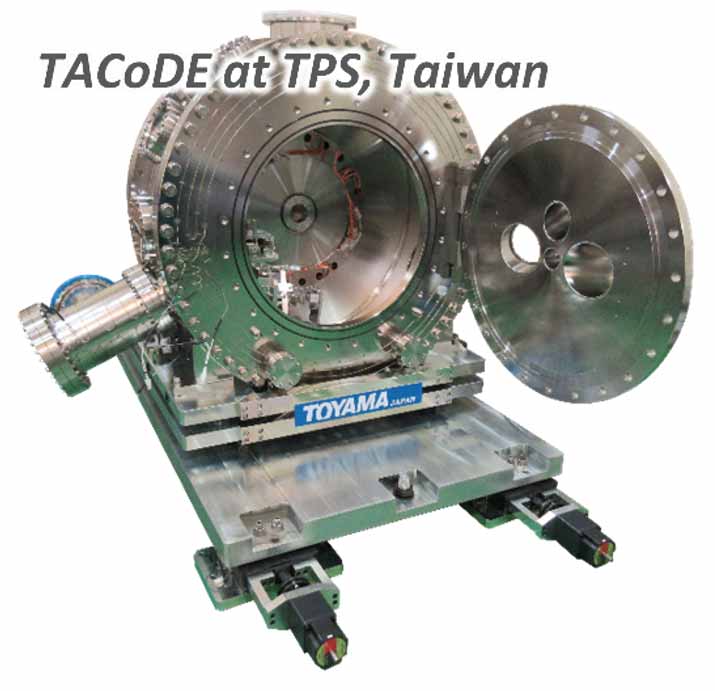

The soft x-ray diffractometer is designed and constructed for the TACoDE beamline [Ref. 1] at the Taiwan Photon Source (TPS). This diffractometer is equipped with a full polarization analyzer and low temperature capabilities. The design of TACoDE is an upgraded version of RASOR [Ref. 2], it preserves all the positive aspects of the RASOR diffractometer while avoiding negative aspects such as in-vacuum cable management.
Compared to RASOR, the following are highlighted features
- Direct provision for water cooling for 2D detector.
- Smaller vacuum chamber size compare to RASOR (1.5 m3)
- Short cryostat length
- Minimize internal wiring
- Minimize vacuum forces on cryostat translations
- Easy access
References
- TPS Beamline 41A Soft X-ray Scattering at NSRRC
- T. A. W. Beale, T. P. A. Hase, T. Iida, K. Endo, P. Steadman, A. R. Marshall, S.S. Dhesi, G. van der Laan, and P.D. Hatton1: 'RASOR: An advanced instrument for soft x-ray reflectivity and diffraction', Rev. Sci. Instrum. 81, 073904 (2010)
