Soft X-ray Reflectometer at Soleil
Features | Specification | Harmonic Reduction System | Internal Photos | Design
Features

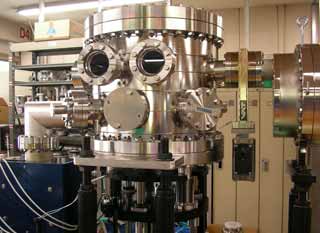

Harmonic reduction mirror system with the
filter wheel on the right of the picture
The Soft X-ray branch of the Metrology and Tests beamline at Soleil Synchrotron has a Reflectometer end station with a Harmonic Reduction System in front of it. This is designed to eliminate the high order harmonics of the monochromator and consists of a filter wheel and a harmonic reduction mirror system containing three mirrors.
