Screen Monitor - Type U
Features | Specification | Delivery Record
Features

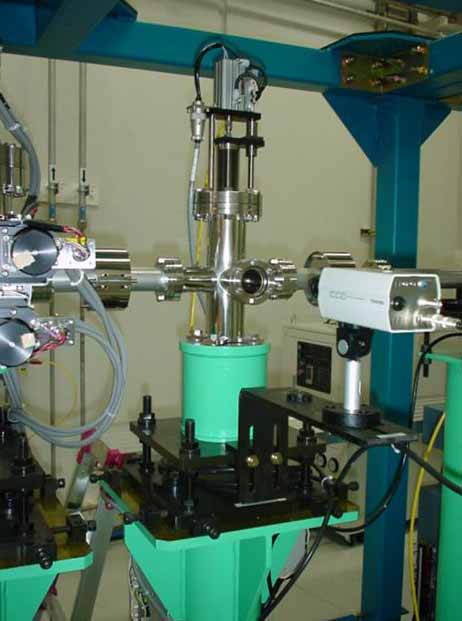

Screen Monitor
This Screen Monitor is installed at front end of an X-ray Undulator beamline. It is used to monitor beam position by irradiation of a fluorescence ceramic plate with synchrotron radiation. It is used at SPring-8 as standard component.
- The designed is compact so as not to require wide installation space.
- Flexible bellows makes it possible to drive it smoothly without leakage.
- The inner surface of the vacuum chamber is treated by electropolishing and a sheath heater is equipped. Therefore, it can achieve UHV condition in a short time.
