Reflectron Type Time-of-Flight Mass Spectrometer KNTOF-1800
Description | Features | Specification | Data
Specification
| Mass Resolution | Δm/m =2300 (CO19) Δm/m = 1300 (benzene) |
| Detector | Hamamatsu Photonics MCP (F4655), 14.5mm effective diameter, matched 50Ω, 5 x107 gain at 2.4kV |
| Ultimate Vacuum | approx 5 x 10-8 torr (with separate vacuum pump) |
| Power | Low Ripple (0.005%pp) DC high voltage power lines x 8 (square gate pulse power is optional) 482.6mm(W) x 199mm(H) x 424.8mm(D) (19 inch rack mounting) |

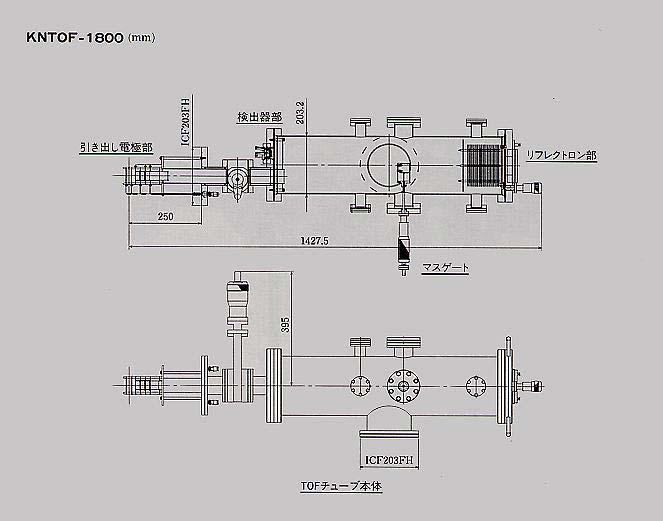

KNTOF-1800 Principle dimensions
