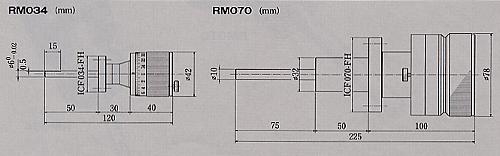

Rotary Motion Drives RM034/RM070
Specifications
Format | RM034 | RM070* | ||
---|---|---|---|---|
Leakage | <1.3x10-11 Pa m³/sec (1x10-10 Torr L/sec) |
|||
Vacuum sealing method | Bellows type | |||
Allowable heating temperature | 200 °C | |||
Transmission torque | Manual | Motor drive | Manual | Motor drive |
3Kg | No | 20Kg | 15Kg | |
Limiting speed | 50rpm | 100rpm | ||
Scale positioning | 5° | 1° (Vernier scale 0.1°) |
||
Axis Backlash | ‹±1° | ‹±0.05° | ||
Flange | ICF034FH | ICF070FH | ||
Weight | 300g | 1650g |
*RM070 made to order
