Linear Motion Drives LM070
Specifications

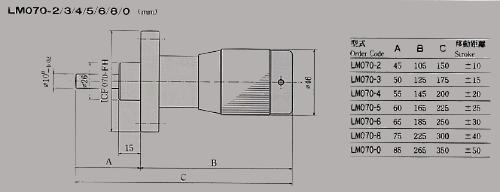

| Format | LM070-2/3/4/5/6/8/0* | ||||||
|---|---|---|---|---|---|---|---|
| Pressure Range | <1.3x10-11 Pa m³/sec (1x10-10 Torr L/sec) |
||||||
| Vacuum sealing method | Bellows type | ||||||
| Allowable heating temperature | 200 °C | ||||||
| Scale positioning | 0.01mm | ||||||
| Allowable maximum thrust | 45Kg | ||||||
| Flange | ICF070FH** | ||||||
| Travel distance (mm) | -2 | -3 | -4 | -5 | -6 | -8 | -0 |
| 20 | 30 | 40 | 50 | 60 | 80 | 100 | |
| Weight | LM070-5 | LM070-0 | |||||
| 1200g | 1550g*** | ||||||
* LM070-5 and LM070-0 are standard types. Other types are made to order. Other special types can also be made to order
**"FH" indicates a drilled hole type ICF flange
***reference weight
