Soft X-ray Diffractometer - RASOR

Features | Specification | Photos | Drawing | 3D Models | Data

Data

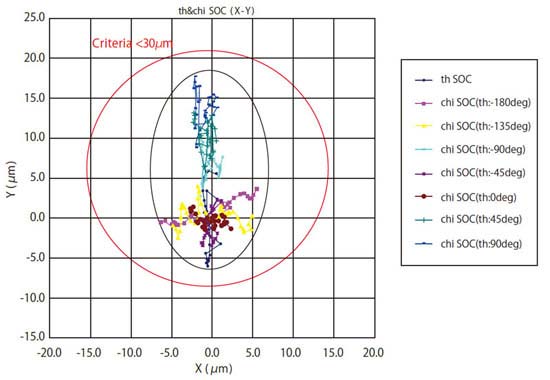

Sphere of confusion data

Plot of Sphere of Confusion

Rasor data

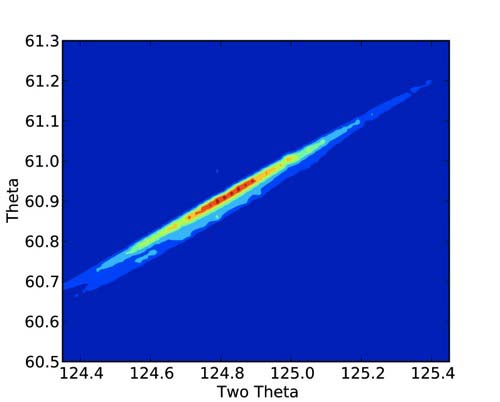

First data from the Rasor diffractometer installed on the I06 beamline at the Diamond Light Source, Oxford, UK. This plot shows the (002) reflection in La0.5Sr1.5Mn2O7. The high resolution of RASOR is demonstrated through resolving the mosaic in the crystal.
Provided by Dr Tom Beale, Durham University
