High Heat Load - XY Slit
Features | Drawing | Design | Photos | Delivery Record
Design
The body of the XY slit is shaped using a wire-cutting process. These diagrams show how the shape of the aperture changes along the length of the slit.

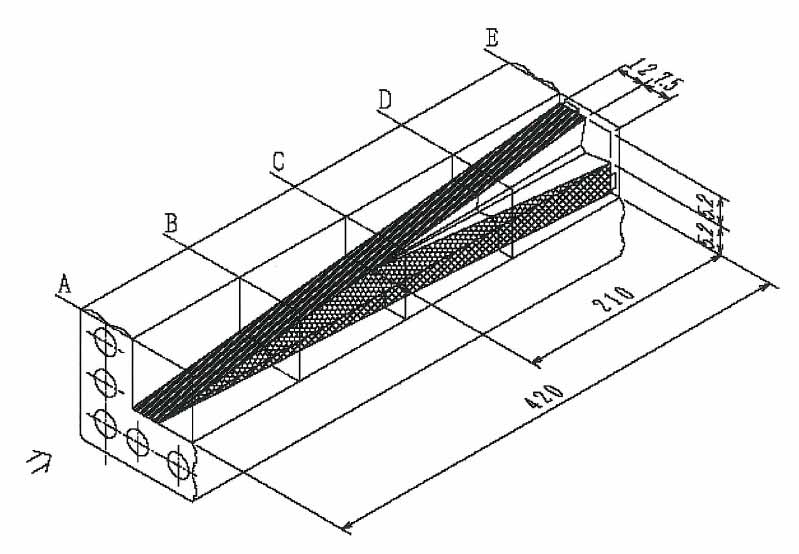

3D diagram of the main body of the XY slit

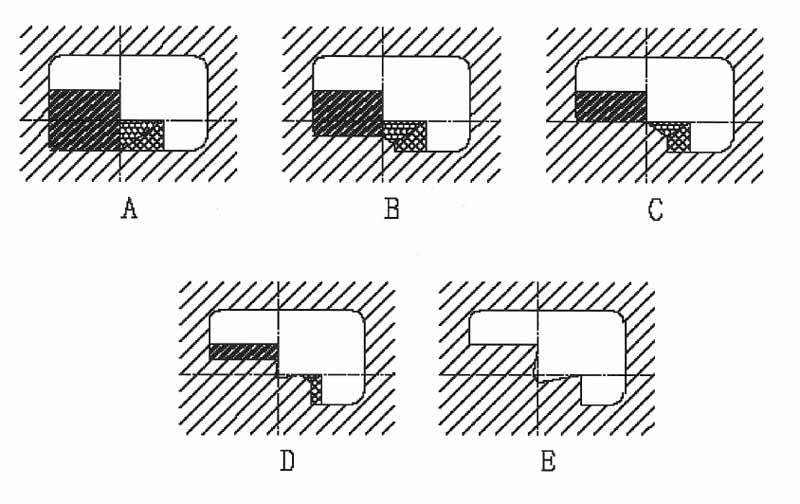

Diagram of the profile of the aperture at intervals along the XY slit
