Screen Monitor - Type U

Features | Specification | Delivery Record



Specification

Model T-SCM-U-001

MaterialsSUS304, SS, OFHC, Air cylinder, Bellows
Helium leak rate≤1x10-10Torr l/sec
Movement mechanismCompressed air cylinder with speed control
Stroke40mm
Surface treatmentElectropolishing - inner surface



Graphite filter

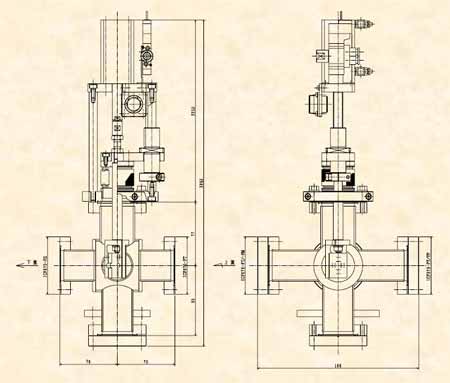

Drawing of Screen Monitor
