Graphite Filter - Type U

Features | Specification



Specification

Model T-FLT-U-001

MaterialsSUS304, SS, OFHC, Stepping motor, Bellows
Helium leak rate≤1x10-10Torr l/sec
Movement mechanismTriptych stepping motor with potentiometer - accuracy 0.1mm
Stroke40mm
Surface treatmentElectropolishing - inner surface
Cooling Water cooling - with no water to vacuum joints



Graphite filter

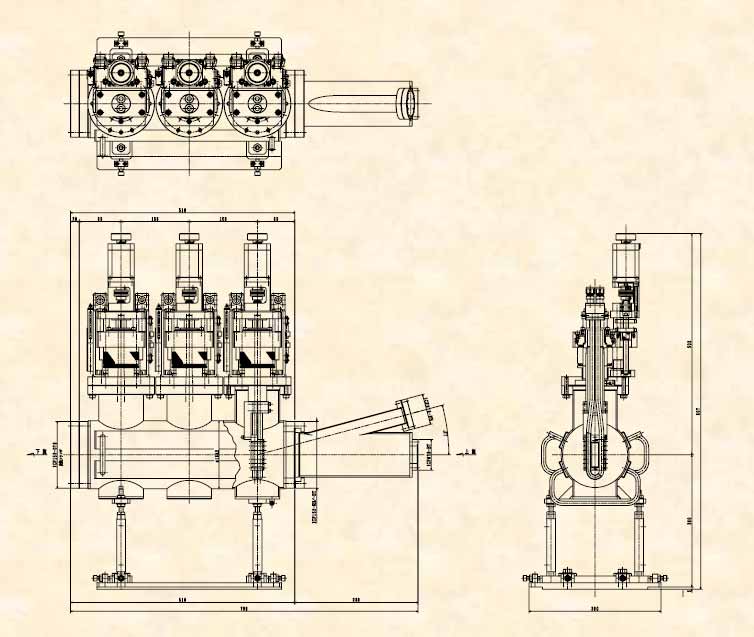

Drawing of Triptych graphite filter
