Beam Axis Alignment Filter - Type U
Specification
Model T-FLT-ALMU-001
| Materials | SUS304, SS, OFHC, Air cylinder, Bellows |
| Helium leak rate | ≤1x10-10Torr l/sec |
| Movement mechanism | Compressed air - double air cylinder |
| Stroke | 68mm |
| Surface treatment | Electropolishing - inner surface |
| Cooling | Water cooling - with no water to vacuum joints |

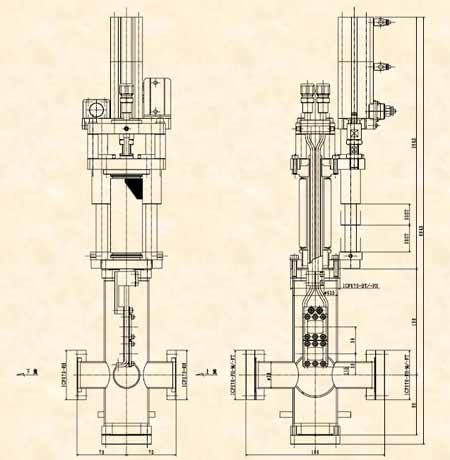

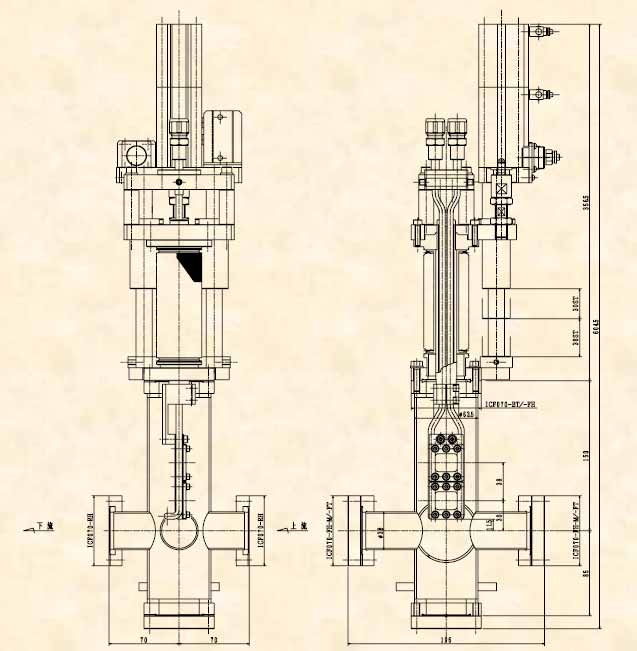

Drawing of Axis Alignment Filter
