Laser Ionisation Compact Analyzer Mass Spectrometer
LICA-350/LICA-MS400
Features | Configuration | Specification | Photos | Data | Data2
Specification
| Mass resolution | ~ 800 (m/z=112) |
| Detector | MCP; Effective diameter 14.5mmφ |
| Ultimate vacuum pressure | ~ 1.0 x 10E-5 Pa |
| Detection limit | Tens of ppbv for aromatic (50 second integrated value) |
| Dimensions | 500 x 500 x 300 mm (excluding laser power supply) |
| Weight | 40kg (excluding laser power supply) |

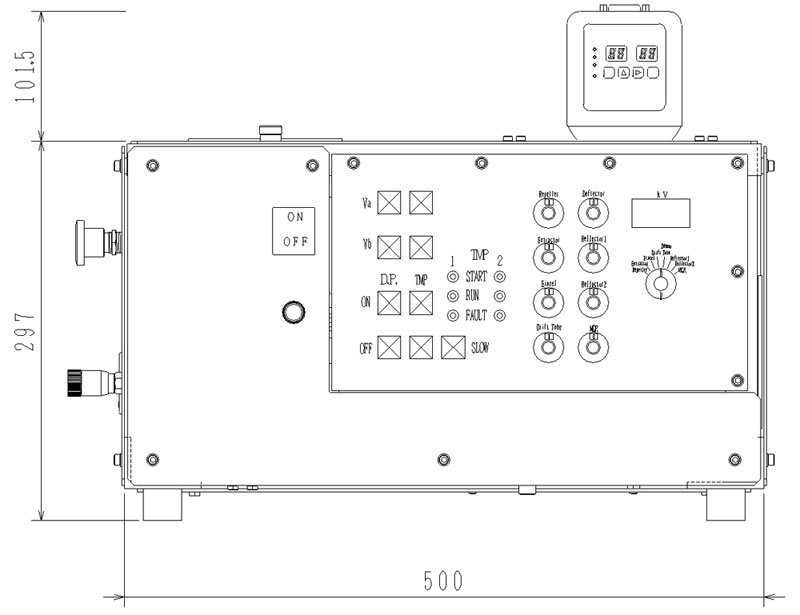

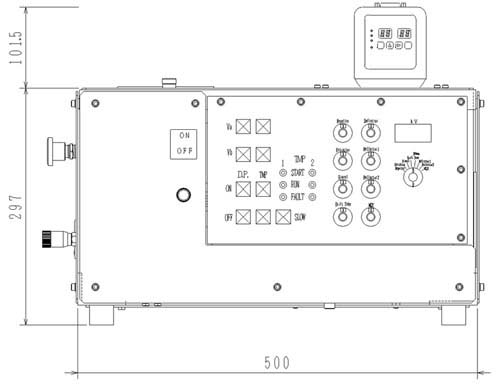

LICA-MS400 drawing
