Hard X-Ray Free Electron Laser Beamline - XFEL

Overview | Monochromator | Mirror system | Beam monitors | Energy slit | Photos

Energy Slit

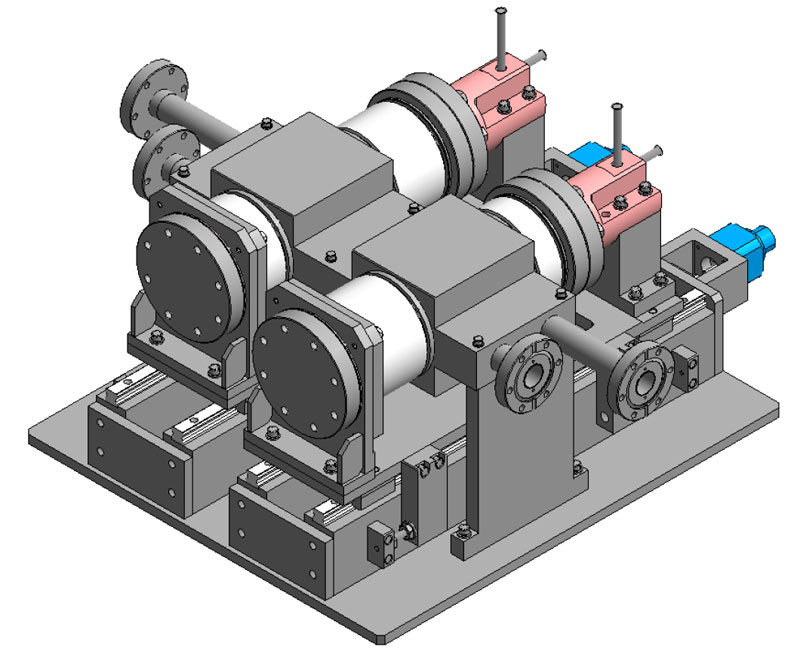

This is an energy slit for the chicanes in the source section of the beamline. The slit system acts to cut off the halo element of the electron beam and to remove dark current on the accelerator tubes.
