Channel Cut Monochromator
Specification
- Double Rotation Stage
- Structure: Double differential evacuation
- Composition: 2θ stage (rotation of detector table) and θ stage (rotation of sample)
- Rotation Accuracy: 0.05°
- Repeatability: 0.01°
- Center Accuracy: 20 µm
- Travel range: θ: -100° ~ +190°, 2θ: -80° ~ +260°
- Resolution: θ: 0.00002 degree/step, 2θ: 0.00002 degree/step
- Gap of centers of 2 rotation stages: < 30 µm
Drawing

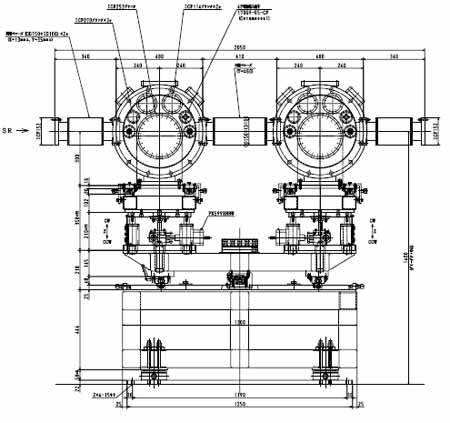

Drawing of Channel Cut Monochromator
Click the image to open the full drawing
